M023

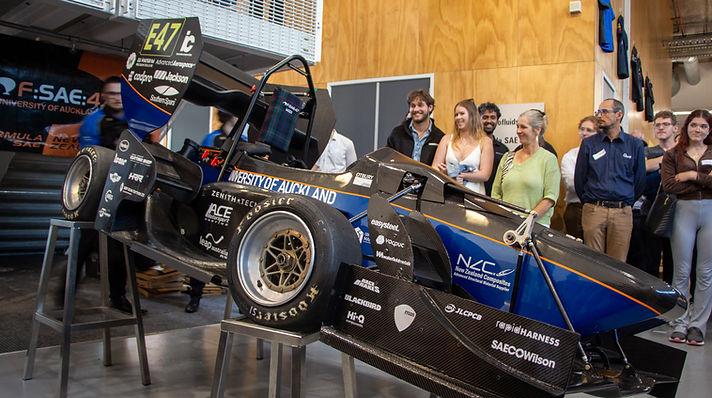

The M023 marks a remarkable achievement for the team. This is the first time we have built a car, from design to manufacture through to on track testing in one year since 2020.
The M023 builds upon a winning platform and aims to push the boundaries of our capabilities and knowledge further than before. With a 4WD powertrain, full aerodynamic package, and three tone livery incorporating carbon fibre, the M023 is guaranteed to turn heads both on and off track!
Formula SAE 2023: December 14th - 17th 2023
Mass
223.5 kg
Motors
4x AMK DD5 Synchronous Servomotor
Power
80kW at 15000rpm
Torque
1117Nm
Inverters
26KVA × 4 Inverters
Accumulator
504V Accumulator with LiCoO2 Cells
Gearbox
In-hub Gearbox, 13.3:1 Reduction
ECU
MoTeC M150
Chassis
CFRP Monocoque with Aluminium Honeycomb Core
Aerodynamics/Ducting
CFRP Aerodynamics Package/CFRP Sidepods
​
Wheelbase
1530.8mm
Track Width (F/R)
1285mm/1187mm
Drive Arrangement
All Wheel Drive
Suspension
Pushrod Öhlins TTX25
Tyres
Hoosier LC0, 16.0"/6.0"
Wheels
10" Custom AL5005 Rim Shells with Custom CNC 6061-T6 Aluminium Centres
Braking System
ISR 22-048 Four-piston, 25mm Front and two-piston Rear + 195mm Slotted Stainless Steel Brake Discs
Uprights
CNC Machined 6061-T6 Aluminium
Other Features
Water-cooled Inverters and Motors
M023 SPECIFICATIONS
