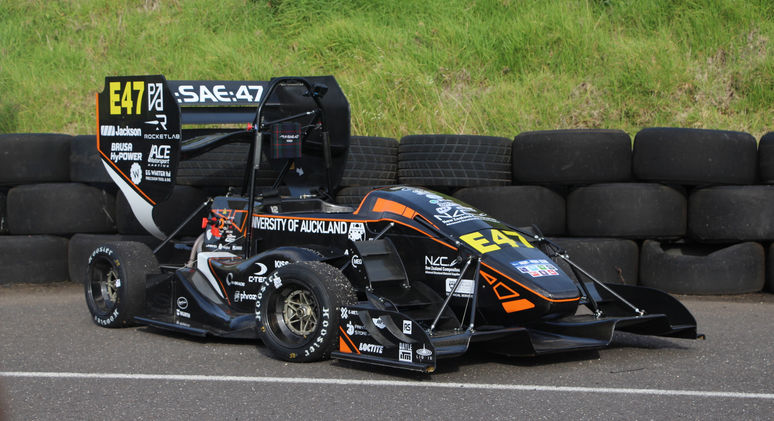

M025

The M025 hits the track with one goal in mind: "Less Mass, More SASS!". This year, we’ve gone back to basics to prioritize weight reduction, resulting in our most agile and responsive car to date.

The M025 features a completely redesigned chassis and the debut of our carbon fiber wheel rim shells. By rethinking the core structure and finding mass savings in every corner of the build, we’ve managed to significantly cut down the car's overall weight. We’re also shaking things up with a wider wheel setup, a bold experiment designed to plant more rubber on the road for better acceleration and sharpened handling.

Months of hard work and late nights have led to this --- a machine that’s lighter, faster, and ready to push the limits of what we can do on track!

Specifications

mass

203.5kg

motors

4x AMK DD5 Synchronous Servomotor

power

20000rpm

torque

1117Nm

ECU

MoTec M150

inverter

26KVA × 4 Inverters

accumulator

557V Accumulator with LiCoO2 Cells

gearboxes

In-hub Gearbox, 13.3:1 Reduction

Chassis

CFRP Monocoque with Aluminium Honeycomb Core

Aero/Ducting

CFRP Aerodynamics Package/CFRP Sidepods

wheelbase

1530.8mm

track width

1310mm/1214mm

drivetrain

4WD

suspension

Double Wishbone, Pushrod Öhlins TTX25

uprights

CNC Machined 6061-T6 Aluminium

Tyres

Hoosier LC0, 16.0"/7.5" (H/W)

Wheels

8" Custom CFRP Rim Shells with Custom CNC 6061-T6 Aluminium Centres

Braking system

ISR 22-048 Four-piston, 25mm Front and two-piston Rear - 195mm Slotted Stainless Steel Brake Discs

other

Water-cooled Inverters and Motors
