M024

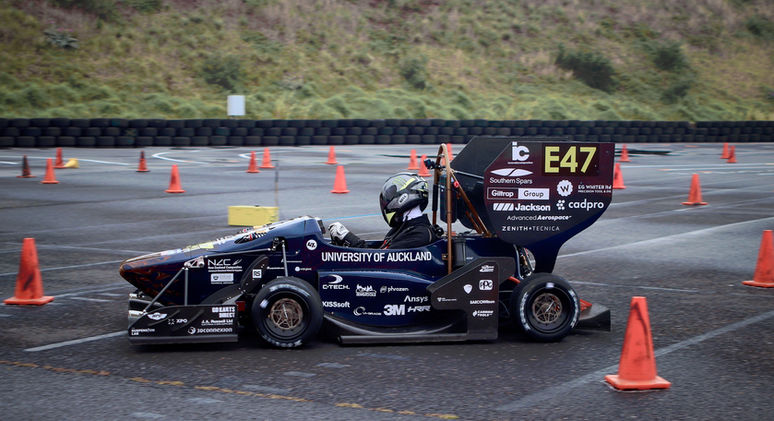

The M024 joins the family as it becomes our 20th car, and the flames are back! 🔥
This machine is the result of months of hard work and dedication. The team’s effort is clear in every detail—and it shows.
Specifications
mass
235kg
motors
4x AMK DD5 Synchronous Servomotor
power
20000rpm
torque
1117Nm
ECU
MoTec M150
inverter
26KVA × 4 Inverters
accumulator
504V Accumulator with LiCoO2 Cells
gearboxes
In-hub Gearbox, 13.3:1 Reduction
Chassis
CFRP Monocoque with Aluminium Honeycomb Core
Aero/Ducting
CFRP Aerodynamics Package/CFRP Sidepods
wheelbase
1530.8mm
track width
1285mm/1188mm
drivetrain
4WD
suspension
Double Wishbone, Pushrod Öhlins TTX25
uprights
CNC Machined 6061-T6 Aluminium
Tyres
Hoosier LC0, 16.0"/6.0" (H/W)
Wheels
10" Custom AL5005 Rim Shells with Custom CNC 6061-T6 Aluminium Centres
Braking system
ISR 22-048 Four-piston, 25mm Front and two-piston Rear - 195mm Slotted Stainless Steel Brake Discs
other
Unsprung Front Wing, Launch Control, Torque Vectoring
