M017

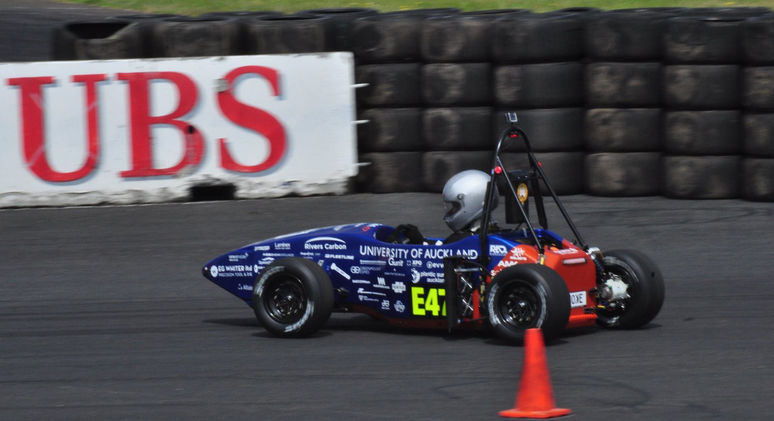

The same, yet better. The M017 featured many features like that of the M016 sporting similar motors, inverters, chassis etc. Yet better because of improvement to the car such as being lighter while still producing equal torque. Lastly, M017 was our first car to wear the signature blue and orange livery.
Specifications
mass
200kg
inverter
26KVA × 2 Inverters
motors
2x AMK DD5 Synchronous Servomotor
accumulator
504V Accumulator with LiCoO2 Cells
power
20000rpm
gearboxes
In-hub Gearbox, 11.4:1 Reduction
torque
480Nm
Chassis
CFRP Monocoque with Aluminium Honeycomb Core
ECU
MoTeC M150
Aero/Ducting
CFRP Aerodynamics Package/CFRP Rear Cooling Ducts
wheelbase
1530mm
Tyres
Hoosier R25B, 6.0"/7.5" (F/R)
track width
1100mm/1060mm
Wheels
10" Whitehorse Industries With Custom CNC 6061-T6 Aluminium Centres
drivetrain
RWD
suspension
Direct Acting Öhlins TTX25
Braking system
AP Racing Dual Piston Caliper Front and Rear - 200 mm Grooved Stainless Steel Uprights CNC Machined 6061-T6 Aluminium
uprights
CNC Machined 6061-T6 Aluminium
other
Water-cooled Inverters and Motors
